PLCBUS sharp collar smart home installation

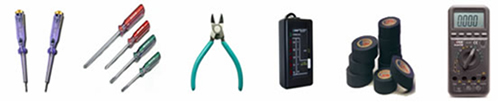

Prior to installation, the preparatory work must be done. The first is the installation tool must be prepared, which is essential. If these out screwdrivers, pliers, electrical tape, signal tester. After the tool is ready to check the scene of the line. First make sure is not the three-phase power, and if you want to install a three-phase three-phase power distribution box in the coupler. The second step to confirm the installation PLC-BUS crystal panel or switch box to have the zero line of the module. This point PLC-BUS is very important.

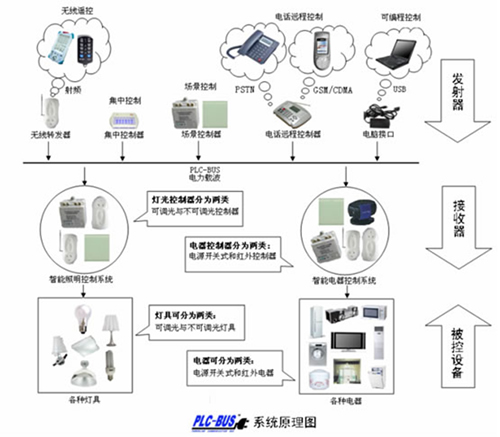

After the preparations are in place you can begin the installation. First part describes how to install the transmitter. Emitting portion from the installation point of view can be roughly divided into two kinds: one is plug and play; One is to simply install the wiring.

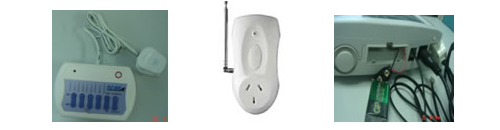

Plug & Play products mainly include: mini-controller, wireless repeaters, "Global Control" telephone remote controller. As long as the supply of these products to a plug can be installed. Wireless repeater which is to be used with the remote control, because the wireless repeater is to receive remote control signals sent from the RF carrier signal is then forwarded out to control the device, so the need to make a wireless remote control with a wireless repeater for Code Register .
Need wiring products: micro controller and double scene scene controller. Concealed miniature scene controller module is needed with ordinary mechanical switches to use. Miniature scene module can achieve four scenarios, specific wiring below. Because the transmitter, so long as the module can be connected to a live wire, mechanical switch is controlled by five modules to connect to the back of the line, the black line is the public side, its red, blue, yellow, green four wires representing the four scenarios.

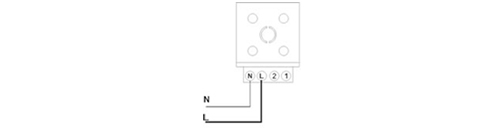

Scene Controller with double mini-scene controller functionality is the same. Wiring more convenient than miniature scene controller, as long as directly connected to a live wire on it. Each represents all the way around the scene.
The scene is like a memory controller , the effect of pre- stored in the scene to be achieved on the inside ( eg : A1 open , A2 open , B1 off , etc. ) , when the start of the scene when the scene controller will transmit the stored commands in sequence . But note that, in the case of three-phase , three-phase coupler installed later, make a scene controller family transferred to a three-phase state.

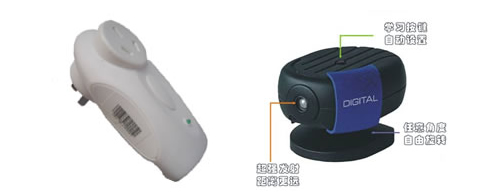

Receiving part can also follow simple plug and play wiring classes and class of two . Plug & Play products are free plug-in product , simply plug in the power set a good address can control it. The first is a free Australian electrical plug , which is mainly used to control the electrical power supply , as long as the electrical plug is inserted in random behind outlet and then plug into the outlet to freely ; another is learning infrared controller is mainly used to control the infrared appliances , switches and other electrical appliances can operate ( such as the default air temperature , the selection of television programs to adjust the volume , etc. ) , as long as the learning IR infrared controller alignment of the infrared emission mouth appliances to the infrared receiver window , ( previously required the use of an infrared controller to set the address code that corresponds to the infrared commands ) .

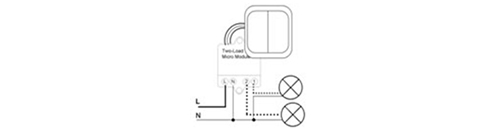

Receive class wiring products are mainly micro modules, crystal panel controller and curtains controllers. Micro Module is used with ordinary mechanical switches, modules take strong power of 220V above. For example, a dual module, namely L and N access live and neutral lines 1 and 2, respectively, then the two street lamps line of control, mechanical switches through three control lines the back of the module to the control module. Wiring diagram below. After setting the address later installed in a variety of ways you can control.
First, the installation crystal panel controller crystal panel down, and then identify the product in accordance with good line, namely L and N connection line and neutral, 1 and 2, respectively, then the two streetlights control line. Good line and then switch fixed with screws, and then provide crystal panel can put something direct debit, complete address of the device can be used to control a variety of ways.

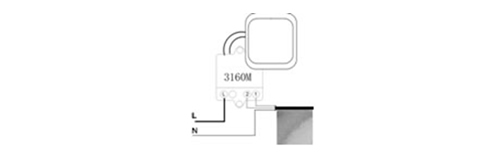

Curtain controller module class can be divided into classes and crystal panels. Now on to the module class to illustrate. Marked in accordance with the wiring module: L terminal FireWire tap; N terminal zero line switch; output "1" then the motor is transferred phase, "2" then reverse-phase motor. Two control lines connected to a mechanical switch, then switch again fixed to the standard 86 cassette installed. Wiring below. Connection with crystal panel curtain controller module.

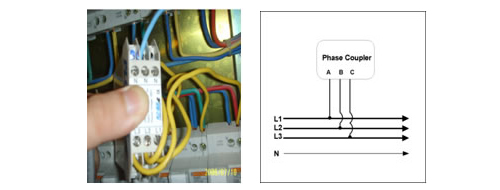

PLC-BUS system, in some cases, requires some auxiliary equipment. Generally used more is a three-phase coupler. In case you need to use three-phase power coupler, its role is to receive signals and then transmit simultaneously to each phase of the amplified. Specific wiring below.
